Soup Collection
Made for AR project AppetizeR, currently in progress
Soup shader with depth fade, foam, vertex animation, procedural textures.
Ingredient shader using multiple UV layer for dynamic controls, including: enable, buoyancy, natural movement in liquid.
Splash effects using randomized textures.
Procedural textures made in SD for oil dots, water splash, leaf.
Reel
Full Video

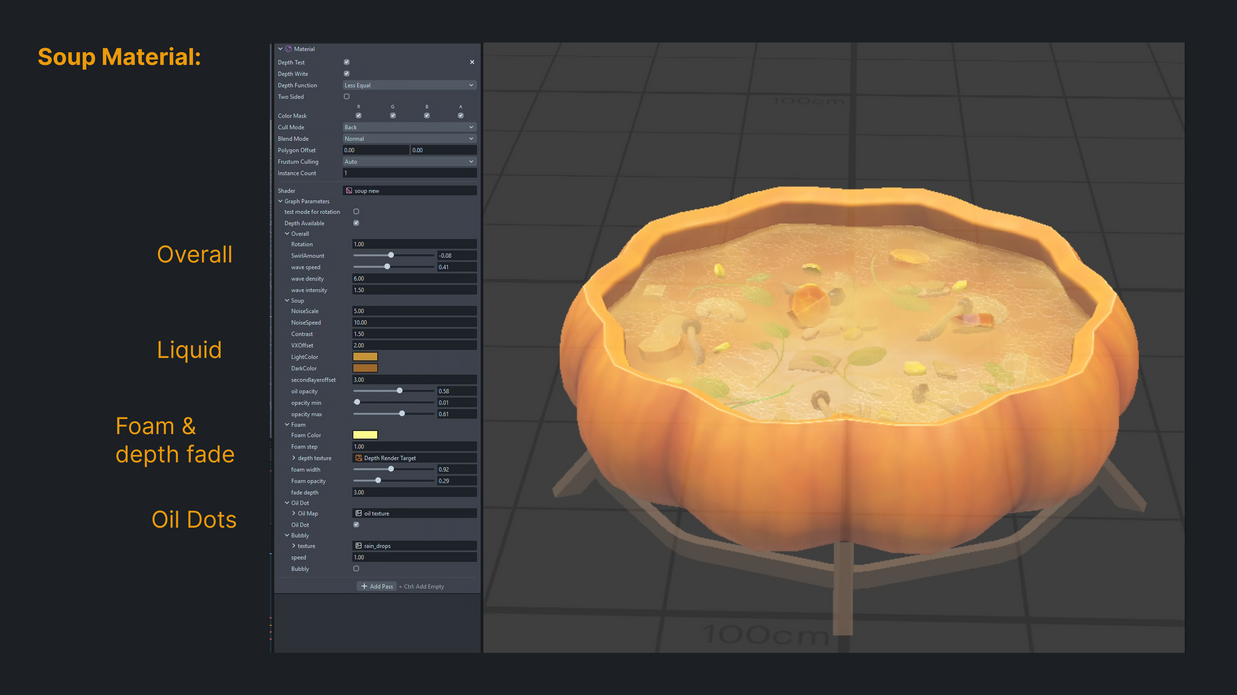

Soup Shader
Soup shader with depth fade, foam, vertex animation, procedural textures.
Ingredient Shader
Ingredient shader using multiple UV layer for dynamic controls, including: enable, buoyancy, natural movement in liquid.

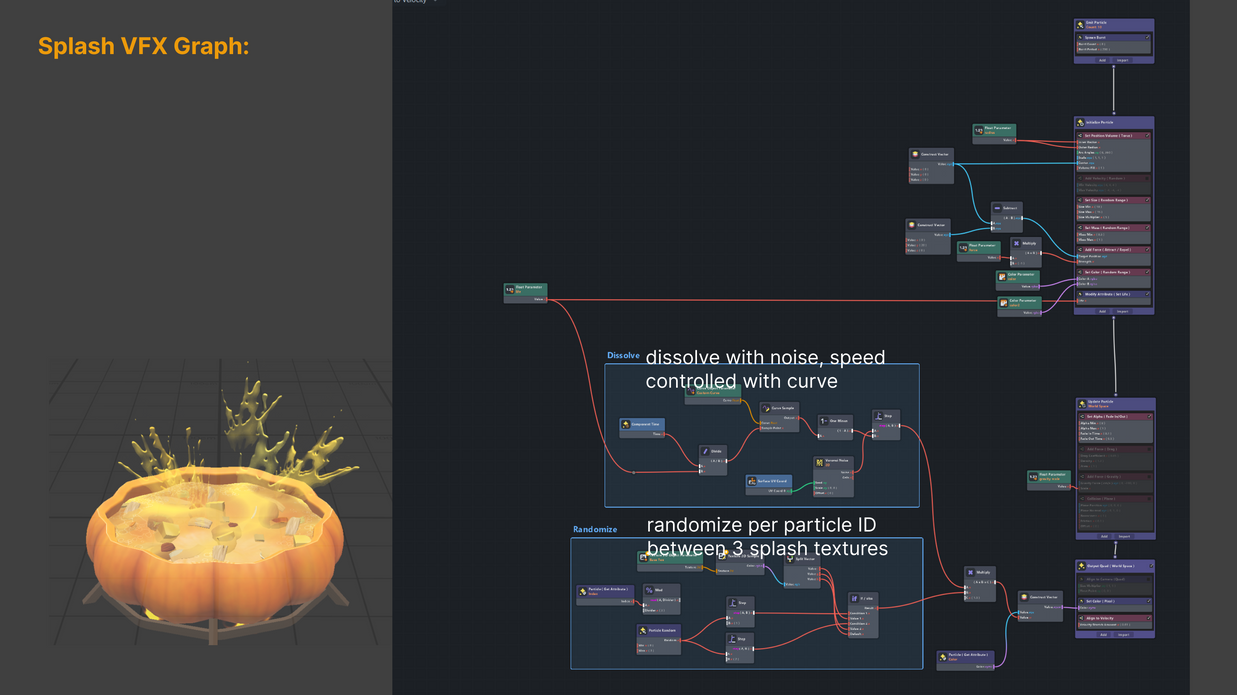

Splash Effect
Splash effects using procedurally generated, randomized textures.
About to add more VFX layers.
Process Documentation
I wasn't able to find ANY soup shader online! I start with learning from the water shader, adding in features like the double layer of procedural noise texture, edge foam and depth fade. Yet it's still very different from soup. I approached the "soup" feeling with textures, density of the liquid, and heat, that drives motions such as boiling and bubbling.
For textures I observed the oil dots as a nice feature to have, and learned from a procedural dirty water foam texture. The link is: https://www.youtube.com/watch?v=1Ls6sHs_7Jk
I learn the layering technique from the tutorial, and alternate it to achieve the shiny, clean oil dot look I need.

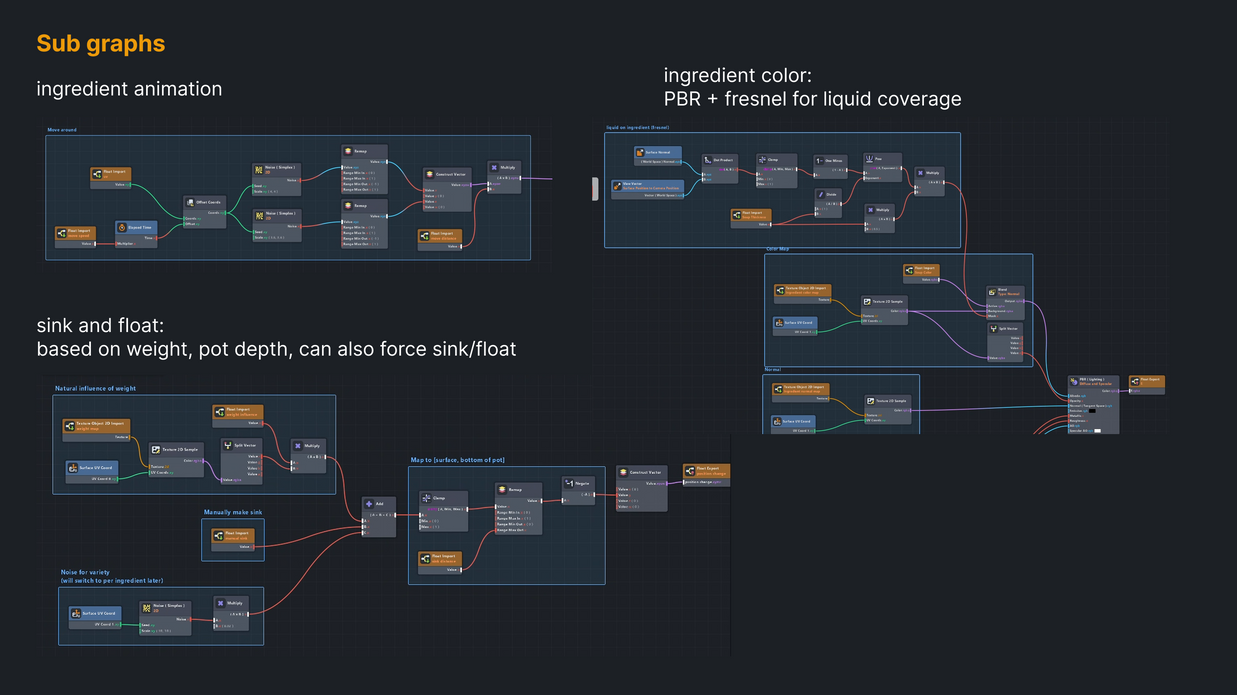

For ingredients I designed a multi-UV structure to gain close control on each ingredient piece.
